AVD_Series
AVD_Series

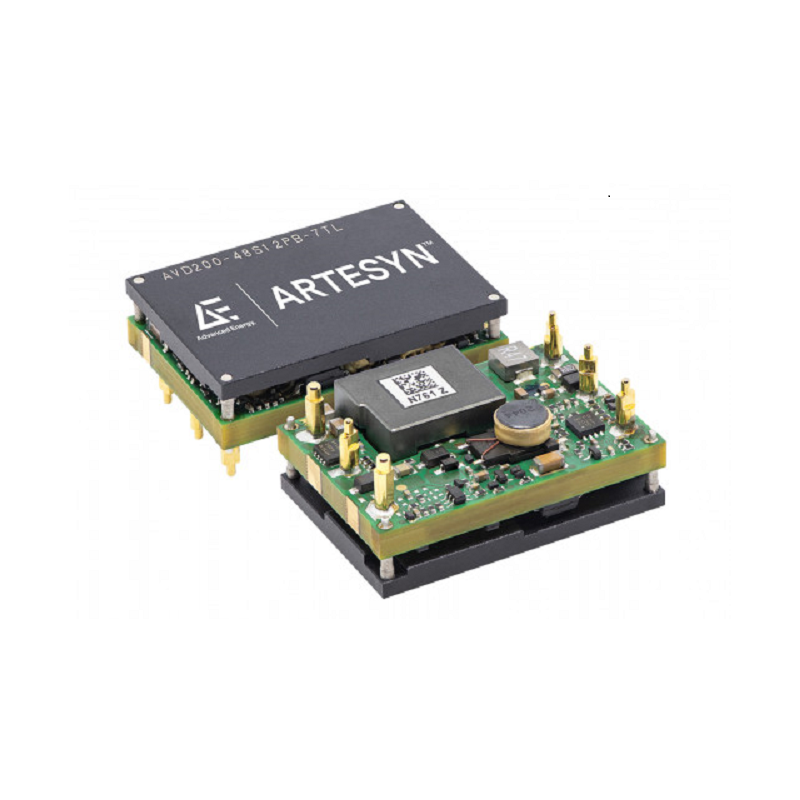

The AVD Series from Artesyn is 16th Brick DC/DC power converter, with a single output and standard pin configuration.
In the series: AVD50B / AVD50 / AVD75B / AVD75 / AVD85B / AVD85 / AVD100 / AVD200-48S12
Available in the following power rating: 50W / 75W / 85W / 120W / 200W
Features:
- Fully regulated output voltage
- Overcurrent and overvoltage, and over temperature protection
- Ultra high peak efficiency
- Wide input range
- Basic isolation
- Remote control function
- Under voltage lockout
- Open frame structure with baseplate option
- Excellent thermal performance
- Two year warranty
- EN62368-1, EN60950-1
Example of model numbers: AVD50B-48S12-6L / AVD50-48S05SL / AVD75-48S3V3-6L / AVD100-48S12B-6L / AVD200-48S12B-7TL / AVD200-48S12TL
If you are interested in our product, you can contact us through our contact page.
The AVD Series from Artesyn is 16th Brick DC/DC power converter, with a single output and standard pin configuration.
In the series: AVD50B / AVD50 / AVD75B / AVD75 / AVD85B / AVD85 / AVD100 / AVD200-48S12
Available in the following power rating: 50W / 75W / 85W / 120W / 200W
Features:
- Fully regulated output voltage
- Overcurrent and overvoltage, and over temperature protection
- Ultra high peak efficiency
- Wide input range
- Basic isolation
- Remote control function
- Under voltage lockout
- Open frame structure with baseplate option
- Excellent thermal performance
- Two year warranty
- EN62368-1, EN60950-1
Example of model numbers: AVD50B-48S12-6L / AVD50-48S05SL / AVD75-48S3V3-6L / AVD100-48S12B-6L / AVD200-48S12B-7TL / AVD200-48S12TL
| Format: | PCB Mount |
|---|---|
| Input Voltage: | 36-75V |
| No. of Outputs: | Single |
| Operating Temp Range: | -40 to +85 degC |
| Output Power: | Up to 200W |
| Power Format: | PCB Mount |
| Power Type: | DC-DC |
