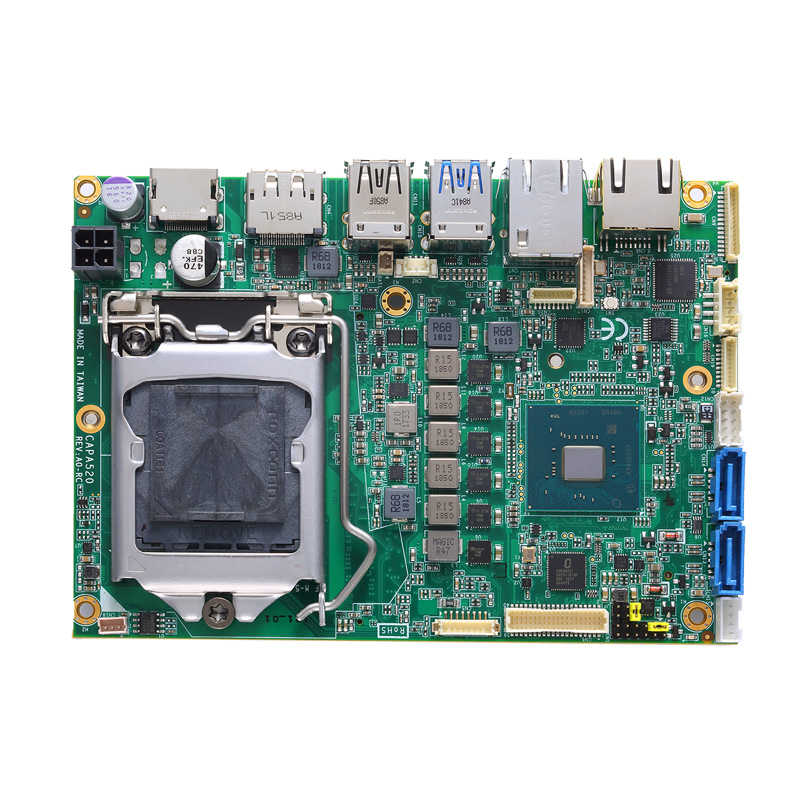

CAPA520
CAPA520
3.5” Embedded SBC with LGA1151Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN
Features
- LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor
- Intel® H310 chipset (Q370 optional)
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 3 GbE LAN
- 1 PCI Express Mini Card slot
- Intel® AMT 12 supported (optional)
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
CAPA520
Product information "CAPA520"
3.5” Embedded SBC with LGA1151Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN
Features
- LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor
- Intel® H310 chipset (Q370 optional)
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 3 GbE LAN
- 1 PCI Express Mini Card slot
- Intel® AMT 12 supported (optional)
| Form Factor: | 3.5" SBC |
|---|---|
| Memory: | DDR4 |
| Memory Technical Data: | DDR4-2666 SO-DIMM, up to 16GB |
| No. of Ethernet Key: | 2-4 |
| No. of USBs: | 5-9 |
| Operating humidity Technical Data: | 10% - 95% relative humidity |
| Power Connector Technical Data: | 2x2 pin |
| Power Supply Type Technical Data: | AT/ATX |
| SMBus/I2C Technical Data: | I2C/SMbus x 1 |
| Serial Ports: | 1 - 2 |
| Serial Ports Technical Data: | RS232 x1, RS422/485 x1 |
| Storage Technical Data: | SATA-600 x2 |
| TPM: | No |
| USB Ports: | USB 3.2 x3, USB 2.0 x1, USB 2.0 (Pin header) x2 |
| Processor Family: | Intel® Celeron®, Intel® Core, Intel® Pentium® |
| CPU: | Intel® Core 9th/8th Gen i7/i5/i3, Pentium® & Celeron® - socket |
| Embedded Operating Temperature : | -20 to +60 degC |
| Power Requirement: | 12v |
| Ethernet Technical Data: | RJ45 x1, Intel I210, RJ45 x1, Intel I219, Intel I210 (pin header) x1 |
| Display Output Technical Data: | HDMI x1, LVDS (dual channel 18/24-bit) x1, Display Port x1 |
| Certifications: | CE |
| Dimensions Technical Data: | 146mm(L) x 104mm(W) |
| Expansion Key: | mPCIe / PCIe |
| Expansion Technical Data: | Full-size mPCIe x1, PCIe x1 |
| Display Output Key: | HDMI / LVDS / Display Port |
| DIO/GPIO Technical Data: | 8-bit x1 |
| Audio Technical Data: | HD audio link x1 |
