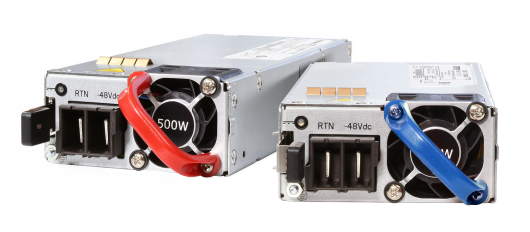

The DS SDC Series from Artesyn is a DC/DC 1U high rack mounted power converter, fully digital and compatible with Artesyn Embedded Power’ universal PMBus graphical user interface (GUI).
Available in the following power ratings: 500W / 1100W
Features:
- N+1/N+N redundant and hot swappable
- Active current sharing
- PMBus compliant, and full digital control
- Overcurrent, overvoltage, over temperature, undervoltage and fan fault protection
- 80plus Platinum efficiency
- 3.4” x 7.7” x 1U
- Two year warranty
- EN61000, EN62368, EMI radiated/conducted class A
Example of model numbers: DS500SDC-3 / DS500SDC-3-001 / DS1100SDC-3 / DS1100-SDC-3-001
If you are interested in our product, you can contact us through our contact page.
The DS SDC Series from Artesyn is a DC/DC 1U high rack mounted power converter, fully digital and compatible with Artesyn Embedded Power’ universal PMBus graphical user interface (GUI).
Available in the following power ratings: 500W / 1100W
Features:
- N+1/N+N redundant and hot swappable
- Active current sharing
- PMBus compliant, and full digital control
- Overcurrent, overvoltage, over temperature, undervoltage and fan fault protection
- 80plus Platinum efficiency
- 3.4” x 7.7” x 1U
- Two year warranty
- EN61000, EN62368, EMI radiated/conducted class A
Example of model numbers: DS500SDC-3 / DS500SDC-3-001 / DS1100SDC-3 / DS1100-SDC-3-001
| Cooling Method: | Forced Air |
|---|---|
| Format: | Digital Controlled |
| Input Voltage: | 36-72V |
| No. of Outputs: | Single |
| Operating Temp Range: | 0 to +50 degC |
| Output Power: | 1100W |
| Output Voltage: | 12V |
| Power Format: | Digital Controlled Power Supplies |
| Power Type: | DC-DC |
| Series: | ArtesynDS |
