G104ACJ-L01
G104ACJ-L01

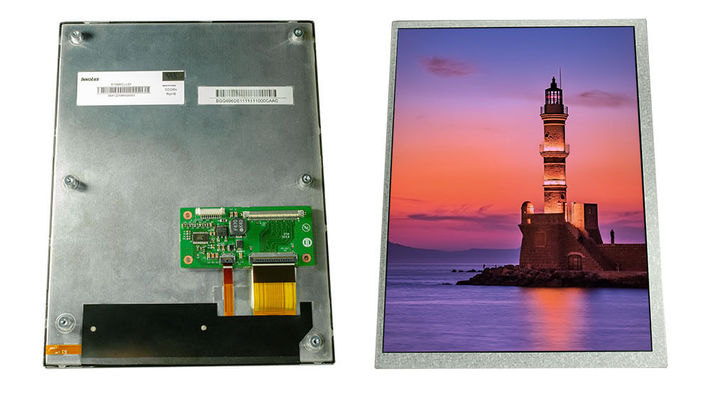

The G104ACJ-L01 from Innolux is a robust 10.4“ TFT display with an operating temperature range from -40 to + 85°C. It is one of the few TFT displays that provide a perfect picture even in high heat or severe frost and are also suitable for outdoor use. The G104ACJ-L01 has a 4:3 format with a resolution of 960x1280 pixels and is operated in portrait mode. Thanks to its high brightness of 900 cd/m², it is perfectly legible even in bright ambient light.
The wide, symmetrical viewing angle of 85° from all directions ensures good visibility of the content displayed, even when regarded from the sides. The G104ACJ-L01 is controlled via an LDVS interface which, like the backlight interface, is routed to the outside via an FFC cable. An LED converter is not integrated in the panel.
The IF432 adapter board works well with it to enable simple and safe control of the display and the backlight. It offers 2 robust connectors for connecting the TFT controller board, as well as an integrated converter for the optimal control of the LED backlight.
If you are interested in our product, you can contact us through our contact page.
The G104ACJ-L01 from Innolux is a robust 10.4“ TFT display with an operating temperature range from -40 to + 85°C. It is one of the few TFT displays that provide a perfect picture even in high heat or severe frost and are also suitable for outdoor use. The G104ACJ-L01 has a 4:3 format with a resolution of 960x1280 pixels and is operated in portrait mode. Thanks to its high brightness of 900 cd/m², it is perfectly legible even in bright ambient light.
The wide, symmetrical viewing angle of 85° from all directions ensures good visibility of the content displayed, even when regarded from the sides. The G104ACJ-L01 is controlled via an LDVS interface which, like the backlight interface, is routed to the outside via an FFC cable. An LED converter is not integrated in the panel.
The IF432 adapter board works well with it to enable simple and safe control of the display and the backlight. It offers 2 robust connectors for connecting the TFT controller board, as well as an integrated converter for the optimal control of the LED backlight.
| Screen Diagonal: | 10.4" |
|---|---|
| Viewing Angle: | 170°/170° |
| Brightness: | 900cd/m2 |
| Resolution: | 960x1280 |
| Interface: | LVDS |
| Ratio: | 1000:1 |
| Operating Temperature: | -40 to +85 degC |
