KIWI310
KIWI310

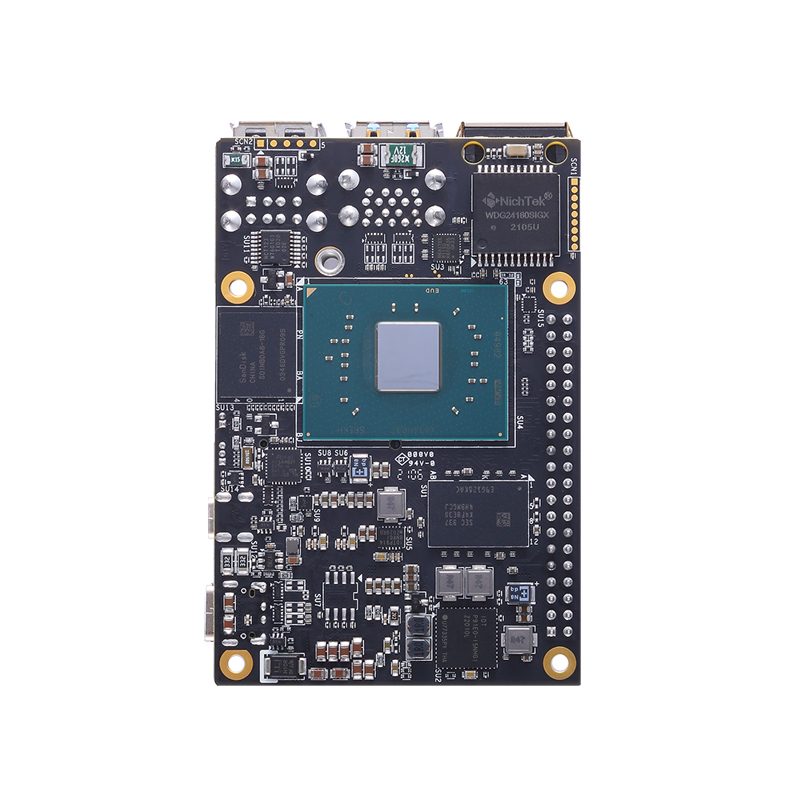

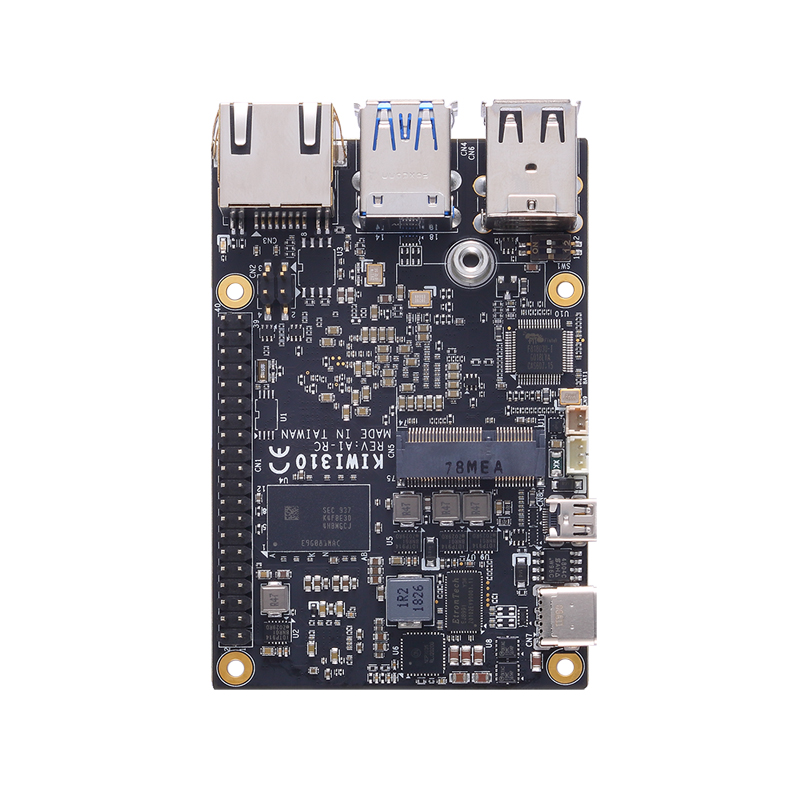

1.8" SBC with Intel® Celeron® Processor N3350, Micro HDMI, 1 GbE LAN, 2 USB 3.2 and 40-pin GPIO
The On-board storage of the board boasts up to 64GB by eMMC and the fanless chassis.
The 1.8” SBC board gives you longevity of around 7-8 years
The board is also available in a Compact Chassis format in the APC-208, this offers a complete EMC approved product with an Operating temp of 0-40°C
If you are interested in our product, you can contact us through our contact page.
1.8" SBC with Intel® Celeron® Processor N3350, Micro HDMI, 1 GbE LAN, 2 USB 3.2 and 40-pin GPIO
The On-board storage of the board boasts up to 64GB by eMMC and the fanless chassis.
The 1.8” SBC board gives you longevity of around 7-8 years
The board is also available in a Compact Chassis format in the APC-208, this offers a complete EMC approved product with an Operating temp of 0-40°C
| Form Factor: | 1.8" SBC |
|---|---|
| Memory: | LPDDR4 |
| Memory Technical Data: | LPDDR4, up to 4GB x1 |
| No. of Ethernet Key: | 1-2 |
| No. of USBs: | 1-4 |
| Operating humidity Technical Data: | 10% - 95% relative humidity |
| Power Connector Technical Data: | USB Type C |
| SMBus/I2C Technical Data: | I2C/SMbus x 1 |
| Storage Technical Data: | eMMC, up to 64GB |
| Processor Family: | Intel® Celeron® |
| CPU: | Intel® Celeron® N3350 |
| Embedded Operating Temperature : | 0 to +60 degC |
| Power Requirement: | 9v/12v/15v/20v |
| Ethernet Technical Data: | RJ45 x 1 |
| Display Output Technical Data: | Micro HDMI x1 |
| Certifications: | CE |
| Dimensions Technical Data: | 85mm(L) × 56mm(W) |
| Display Output Key: | Micro HDMI |
| DIO/GPIO Technical Data: | 40-pin |
