PrismaECO-V

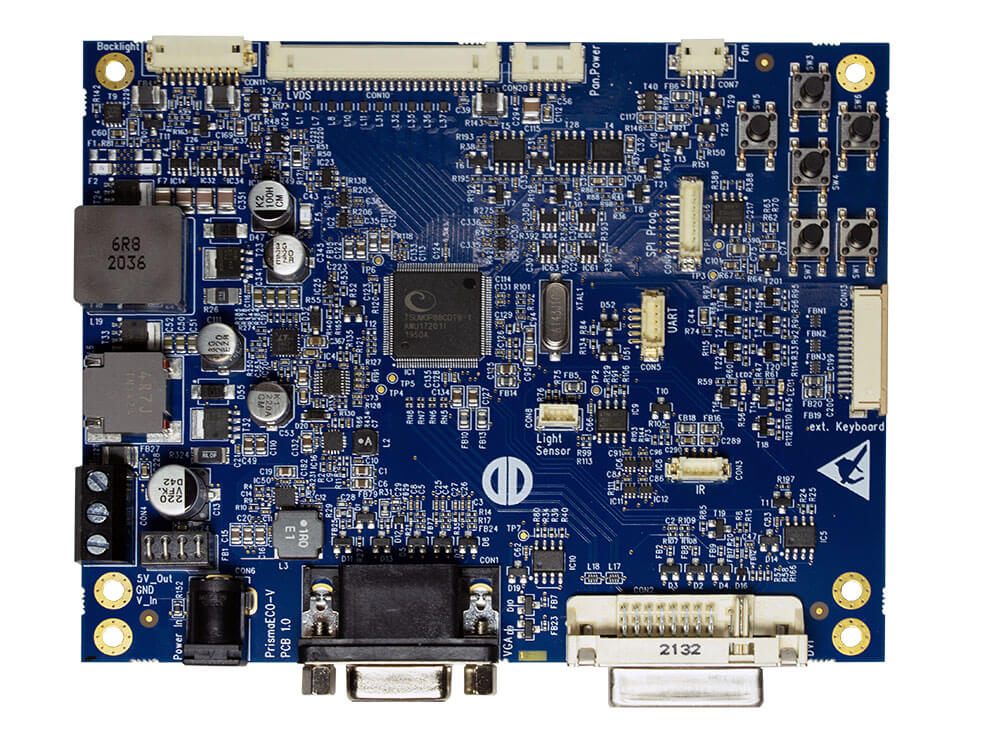

The PrismaECO-V is a TFT controller board designed for industrial applications, capable of driving TFT displays from VGA (640x480) to WUXGA (1920x1200) via RGB analog and DVI interfaces. It is cost-effective, space-saving, and delivers high-quality images. Available in both 12V (item no. PR-02-230) and 24V (item no. PR-02-231) versions.
Options:
Read More
Key Features:
- RGB analog + DVI/HDMI input
- Automatic brightness control with optional sensor
- Temperature sensor option
- Operating temperature range: -20 to +70°C
- LVDS output
- 5V/2A power output for external USB-HUB interfaces
- Excellent auto-adjust functionality
- Input format autodetection and configuration
- Power supply: +12V or +24V, depending on the version
- DDC/CI functions
- Optimised for power-on sequencing and PWM control of LED backlit TFT displays
- Modern On-Screen Display (OSD) for auto-adjust and menu settings
- Fan connection 12V 4-pin
Options:
- Remote OSD via serial command protocol on USB interface (additional COM port)
- Infrared remote control
- Brightness sensor for automatic brightness control (I²C)
- Temperature sensor for internal temperature monitoring (I²C)
- Frozen screen sensor for detecting image failure or frozen image (I²C)
The end user can configure several parameters of the PrismaECO-V individually by using the new MStarRover Software.
