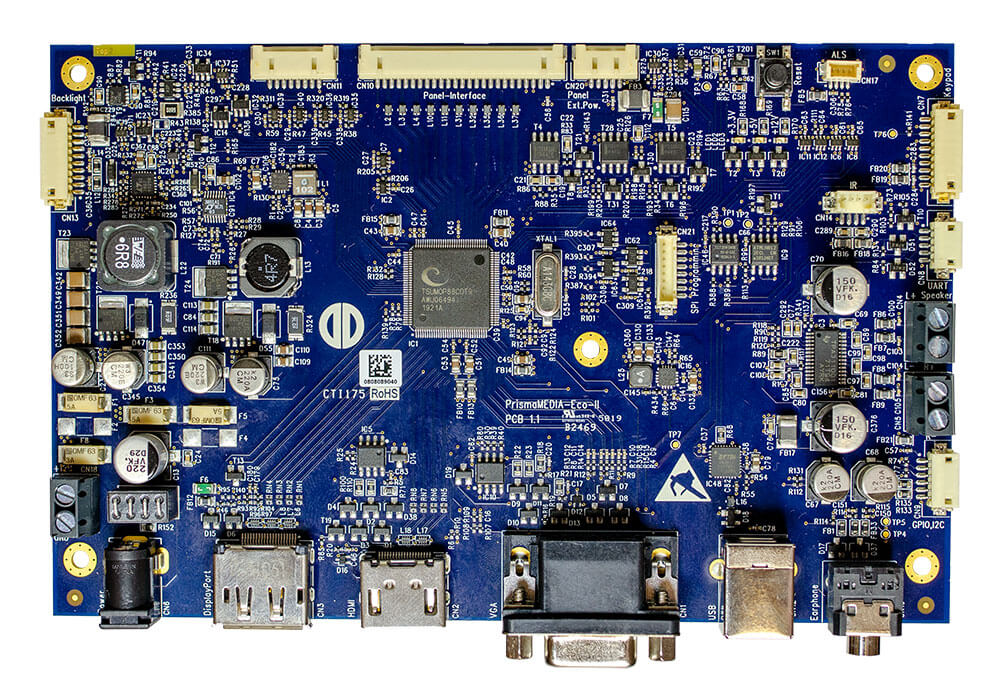

PrismaMediaECO-II
Our PrismaMediaECO-II is a competitive, space-saving and efficient
multimedia card. It controls TFT displays from VGA (640x480) up to WUXGA
(1920x1200) via LVDS. The board is based on the MSrat Graphics Chip and
is 100% backward compatible to PrismaMEDIA-Eco
Features:
- 12V and 24V Vcc
- HDMI 1.3 (compatible with HDMI 1.4)
- DVI (via HDMI)
- Display Port 1.2a
- VGA
- Option: USB-B (e.g. for firmware update, remote brightness control etc.)
- Indiviual configuration of each input interface
- Remote OSD via serial command protokoll at RS232-UART interface
- DDC/CI functions at DP- and HDMI auxiliary channel
- Modern EMI-design
- Perfectly designed for power-on-sequencing and PWM-control of TFT displays with LED backlight
- HDMI/DP/VGA bridge
PrismaMediaECO-II enables the end user to set different parameters using the new MStarRover software.
Options:
- Remote OSD via serial command protocol at USB interface (additional COM port)
- infrared remote control
- 2x5W active stereo audio & headphone 3.5 TRS connector
- ambient light sensor for automatic brightness control (I²C)
- Temperature sensor for monitoring the internal temperature (I²C)
Audio performance:
- THD+N Total harmonic distortion + noise at PO = 1 W: < 0.2 %
- Channel equality: < 1 dB
- Crosstalk at PO = 0.25 W, f = 1 kHz: < -82 dB
- SNR Signal-to-noise ratio at PO = 5 W, f = 1 kHz: < -105 dB
If you are interested in our product, you can contact us through our contact page.
