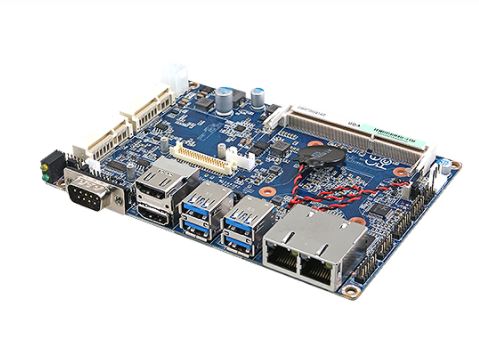

ECM-APL2-B
ECM-APL2-B
Intel® Pentium®/Celeron®/Atom™ SoC Processor 3.5" Micro Module
Features
- Bottom layer soldered
- Intel® Pentium®/Celeron®/Atom™ BGA Processor
- Intel® HD Graphics 500/505
- Single DRAM Socket, Max. Up to 8GB DDR3L 1866MHz
- Triple Display: Dual HDMI, LVDS
- Dual mPCIe Expansion Slot
- Dual Gigabit Ethernet, HD Audio Code
- 0~60°C for N & J Series, -40~85°C for E Series
- TPM 2.0
If you are interested in our product, you can contact us through our contact page.
In order to use the wishlist please make sure you are registered as a user to proceed.
OK
SKU:
ECM-APL2-B
Product information "ECM-APL2-B"
Intel® Pentium®/Celeron®/Atom™ SoC Processor 3.5" Micro Module
Features
- Bottom layer soldered
- Intel® Pentium®/Celeron®/Atom™ BGA Processor
- Intel® HD Graphics 500/505
- Single DRAM Socket, Max. Up to 8GB DDR3L 1866MHz
- Triple Display: Dual HDMI, LVDS
- Dual mPCIe Expansion Slot
- Dual Gigabit Ethernet, HD Audio Code
- 0~60°C for N & J Series, -40~85°C for E Series
- TPM 2.0
| Certifications Technical Data: | CE, FCC Class B |
|---|---|
| Form Factor: | 3.5" SBC |
| Memory: | DDR3L |
| Memory Technical Data: | DDR3L-1333 SO DIMM, up to 8GB x 1 |
| No. of Ethernet Key: | 2-4 |
| No. of USBs: | 5-9 |
| Operating System Key: | Windows 10 |
| Operating humidity Technical Data: | 40°C @ 95% Relative humidity |
| Power Connector Technical Data: | DC-In |
| Power Supply Type Technical Data: | AT/ATX |
| Serial Ports Technical Data: | RS-232 x1, RS-232 (Pin header) x1 |
| Storage Technical Data: | Full size Mini PCIe Supports mSATA x1 |
| USB Ports: | USB 3.1 x4, USB 2.0 (pin header) x2 |
| Processor Family: | Intel® Celeron® |
| CPU: | Intel® Celeron® J3455 |
| Embedded Operating Temperature : | 0 to +60 degC |
| Power Requirement: | 12v |
| Ethernet Technical Data: | RJ45 x2, Intel I210AT |
| Display Output Technical Data: | HDMI x2, LVDS x1 |
| Certifications: | FCC Class B |
| Dimensions Technical Data: | 146mm(L) x 101mm(W) |
| Expansion Key: | mPCle |
| Expansion Technical Data: | Half-size mPCIe x1 |
| Display Output Key: | HDMI / LVDS |
| DIO/GPIO Technical Data: | 8-bit x1 |
| Audio Technical Data: | Realtek ALC888S Audio x1 |
