PICO-V2K4
PICO-V2K4

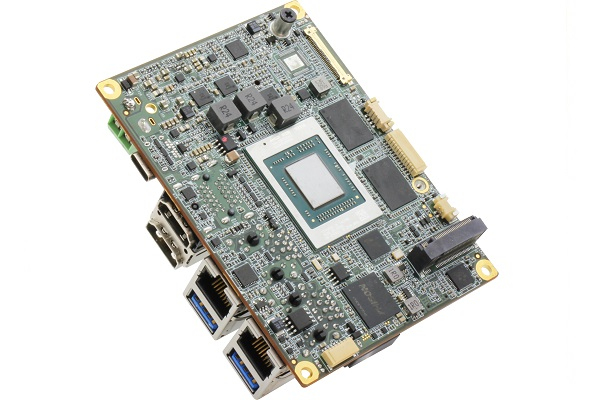

The smallest form factor powered by the AMD RYZEN™ V2000 embedded Processor family available, the PICO-V2K4 has a foundation of high-performance AMD Radeon™ graphics and 7nm processing technology. This CPU is integrated into a compact (3.94" x 2.84") board containing incredibly rich I/O features and expansion options, while also maintaining the power efficiency that AAEON’s PICO-ITX board range is renowned for.
The PICO-V2K4’s synthesis of unprecedented high-speed computing power, groundbreaking graphic capability and targeted I/O supply the optical supremacy needed for edge applications such as medical imaging, industrial automation, and embedded gaming.
As part of its rich expansion options, the PICO-V2K4’s M.2 2280 M-key allows applications to operate faster and enable greater system memory. With up to 32GB of LPDDR4x on board memory, the PICO-V2K4 can hit clock speeds of up to 3733 MHz while maintaining a low operating voltage.
If you are interested in our product, you can contact us through our contact page.
The smallest form factor powered by the AMD RYZEN™ V2000 embedded Processor family available, the PICO-V2K4 has a foundation of high-performance AMD Radeon™ graphics and 7nm processing technology. This CPU is integrated into a compact (3.94" x 2.84") board containing incredibly rich I/O features and expansion options, while also maintaining the power efficiency that AAEON’s PICO-ITX board range is renowned for.
The PICO-V2K4’s synthesis of unprecedented high-speed computing power, groundbreaking graphic capability and targeted I/O supply the optical supremacy needed for edge applications such as medical imaging, industrial automation, and embedded gaming.
As part of its rich expansion options, the PICO-V2K4’s M.2 2280 M-key allows applications to operate faster and enable greater system memory. With up to 32GB of LPDDR4x on board memory, the PICO-V2K4 can hit clock speeds of up to 3733 MHz while maintaining a low operating voltage.
| Certifications Technical Data: | CE, FCC Class A |
|---|---|
| Form Factor: | 2.5" PICO ITX |
| Memory: | LPDDR4 |
| Memory Technical Data: | LPDDR4x-3733, up to 32GB (Onboard Memory) x1 |
| No. of Ethernet Key: | 1-2 |
| No. of USBs: | 5-9 |
| Operating System Key: | Linux, Windows 10 |
| Operating humidity Technical Data: | 0% - 90% relative humidity |
| Power Connector Technical Data: | 2-Pin Pheonix connector x1 / Lockable DC-in x1 |
| SMBus/I2C Technical Data: | I2C/SMbus x 1 |
| Serial Ports: | 2 - 4 |
| Serial Ports Technical Data: | x1 RS232/422/485 (Header) |
| Storage Technical Data: | SATA 6.0 Gb/s x1, Onboard NVME SSD up to 128GB (Optional) |
| TPM: | Yes |
| TPM Technical Data: | TPM 2.0 |
| USB Ports: | USB 3.2 Gen 2 x 1 (Type C), USB 3.2 Gen 2 x 2 (Type A), USB 2.0 x4 (Pin header) |
| Processor Family: | AMD Ryzen™ |
| CPU: | AMD Ryzen™ Embedded V2000 processors |
| Embedded Operating Temperature : | 0 to +60 degC / -40 to +85 degC |
| Power Requirement: | 12v |
| Display Output Technical Data: | HDMI 2.0 x1, HDMI 1.4 x1, Type C DP x1 |
| Certifications: | FCC class A |
| Dimensions Technical Data: | 100mm(L) x 72mm(W) |
| Expansion Key: | M.2 / mSATA / mPCIe |
| Expansion Technical Data: | M.2 Key E (PCIe x1 USB 2.0) x1, Full-size mSATA/mPCIe x1 |
| Display Output Key: | HDMI / Type C |
| DIO/GPIO Technical Data: | 8-bit x1 |
| Audio Technical Data: | Realtek ALC269 (Optional) x1 |
